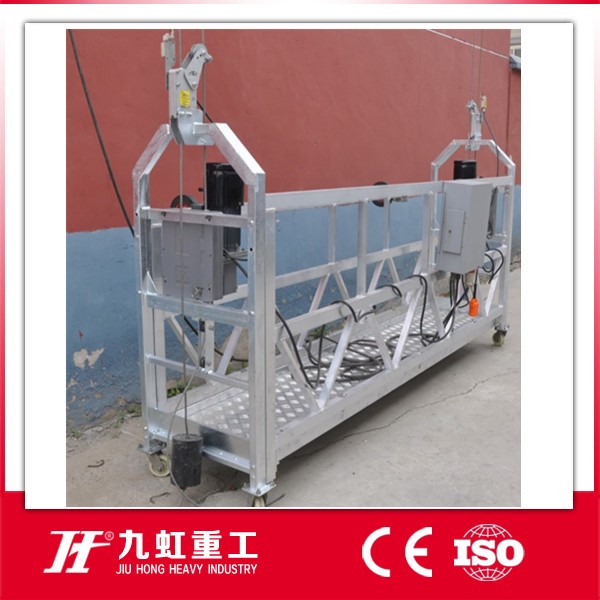

Aluminium electric construction Suspended platform

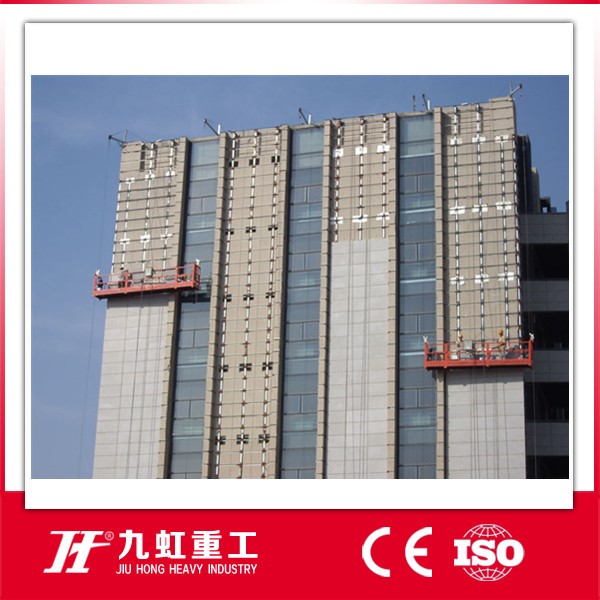

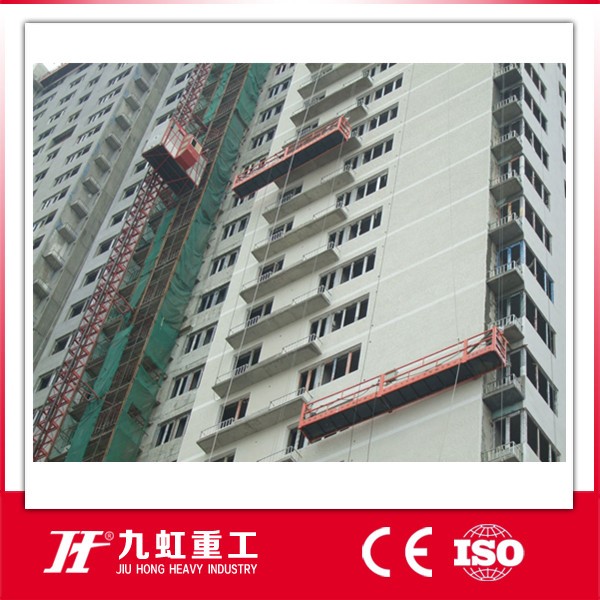

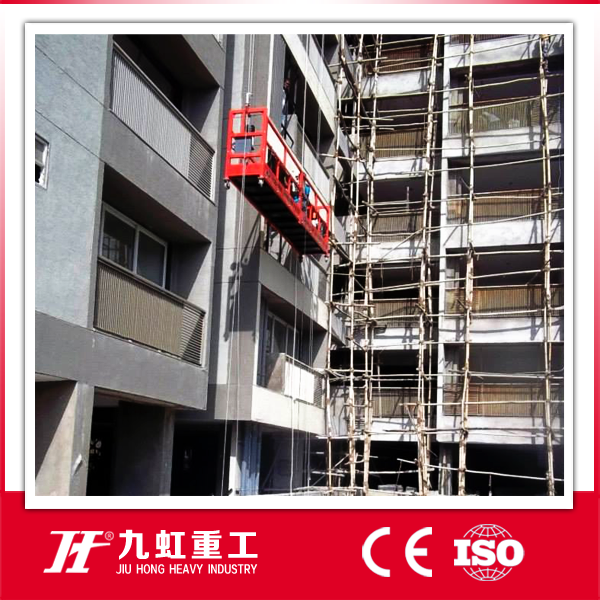

Product introduction Product Application Gondola: High building Cleaning , Painting and Maintenance . Type: Aluminum, Hot galvanized , Steel Paint.

Model	ZLP500	ZLP630	ZLP800	ZLP1000
Load	500kgs	630kgs	800kgs	1000kgs
Platform length	5m(2+3)	6m(2+2+2)	7.5m(2.5*3)	7.5m(2.5*3)
Hoist	1.5kw x2	1.5kw x2	1.8kw x2	2.2kw x2
Safe lock	2 sets	2 sets	2 sets	2 sets
Steel wire rope	8.3mm	8.3mm	9.1mm	8.6mm
Cable	100m	100m	100m	100m
Work height	100m	100m	100m	100m
Roof support system	Outreach: 1.3~1.7m	Outreach: 1.3~1.7m	Outreach: 1.3~1.7m	Outreach: 1.3~1.7m
Counter weight	1000kgs	1000kgs	1000kgs	1200kgs

Main Features 1) Suspension Mechanism: Easy to install High safe factor Long extend 1.3~1.7m Hot deep galvanized treatment
2) Hot galvanized steel wire rope
3) Schneider electrical control panel
4) Hoist with CE test report
5) Quality guarantee:One  year and free Spare Parts for free

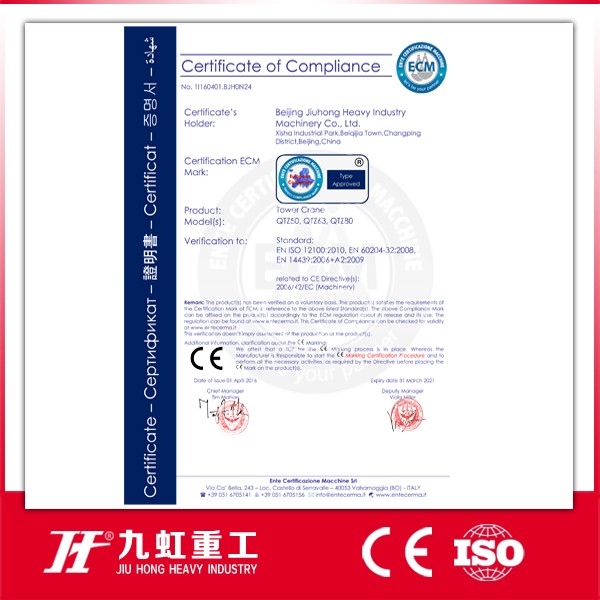

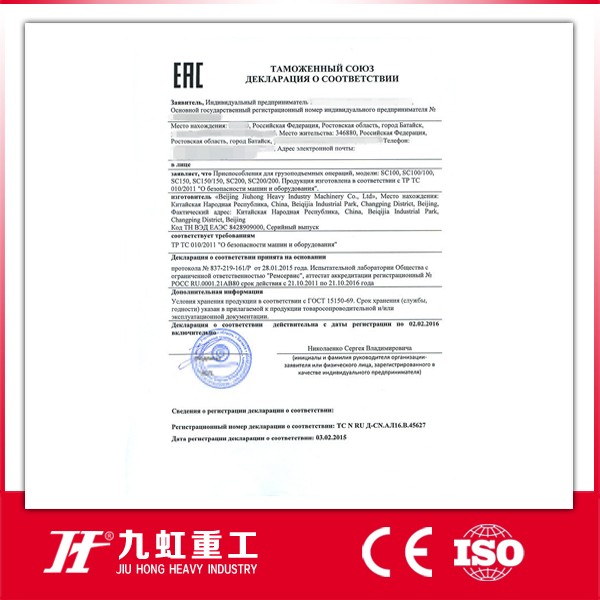

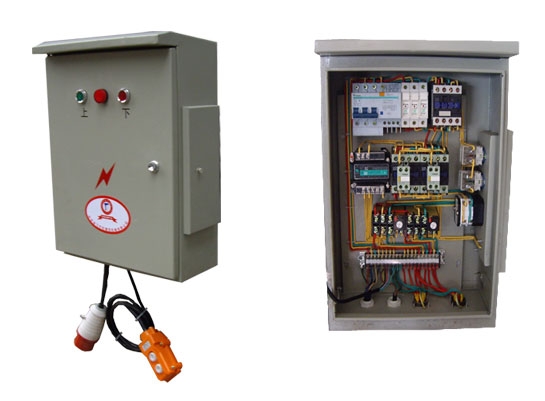

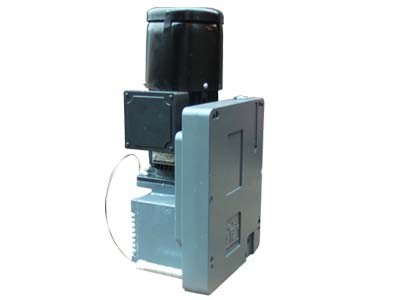

Certifications Detailed Images Machine Parts Name: HOIST  Brand: JIUHONG Original: China 1.5kw,1.8kw,2.2kw. Pass CE and with TEST report. Our hoist could bear high temperature. Quality guarantee: One year Main Parts  Name: Electrical control panel
Brand: Jiuhong
Original: China

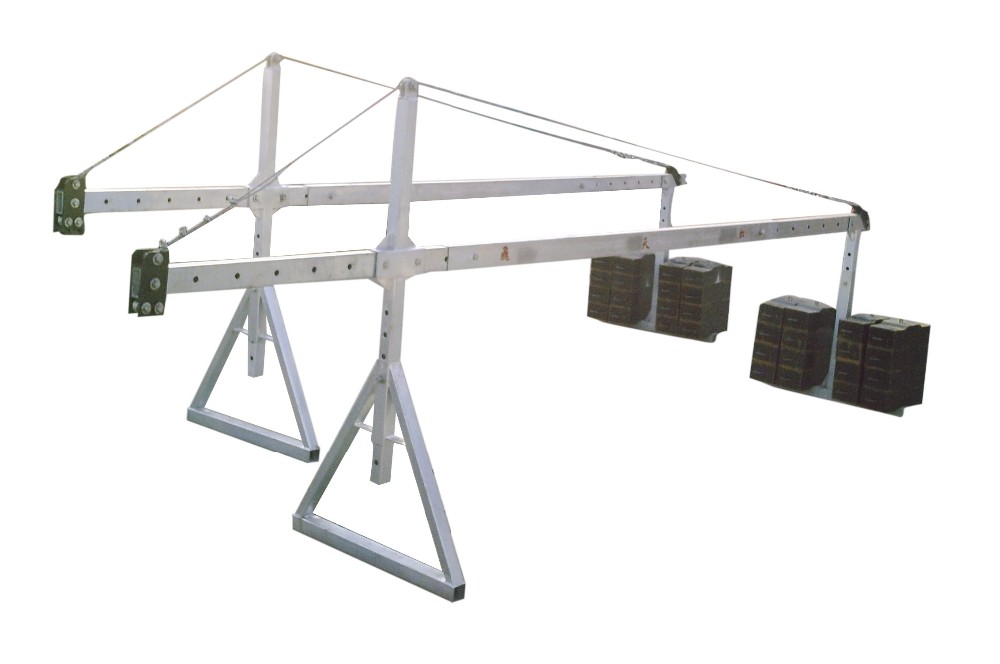

Electrical parts use SIEMENS , SCHNEIDER brand. Machine Parts Name: Suspension Mechanism
Brand: Jiuhong
Original: China

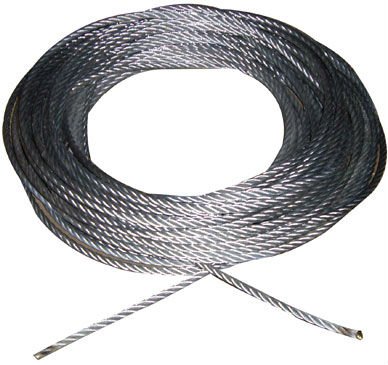

Hot galvanized treatment. Extend:1.3~1.7m Adjust height:1.15~1.75m Connect by pin and snap. Front middle back beam: 3, 3, 2m Main Features Name: Galvanized wire rope
Brand: Jiuhong
Original: China
Diameter 8.3mm,9.1mm,8.6mm. Name brand in China. Anti-rust is best. One drum:2000m Project Packing & Delivery

Packaging
Size	3000(L) * 1200 (W) * 1100 (H)
Weight	2 T
Packaging Details	Steel Pallet

Packaging
Size	40HC
Weight	25T
Packaging Details	25SETS  Steel Pallets.

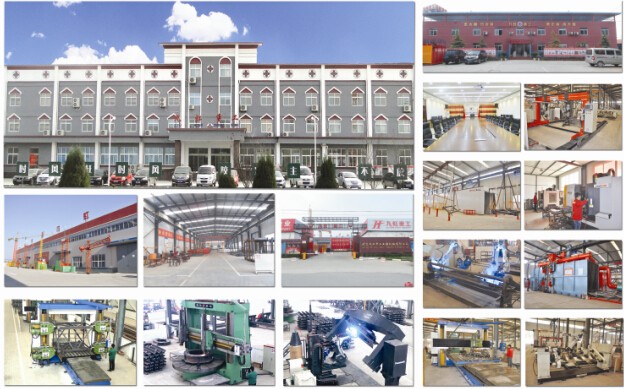

Our Service Pre-Sales Service * Inquiry and consulting support.  * Sample testing support.  * View our Factory. After-Sales Service
* Training how to instal the machine, training how to use the machine.  * Engineers available to service machinery overseas.

Contact us if you need more details on suspended platform. We are ready to answer your questions on packaging, logistics, certification or any other aspects about construction electrical Suspended platform、rope suspended platform. If these products fail to match your need, please contact us and we would like to provide relevant information.
